dust collector model :: ระบบดูดฝุ่นไทย รุ่นใหม่ พัฒนาโดยทีมงานดูดฝุ่นดอทคอม

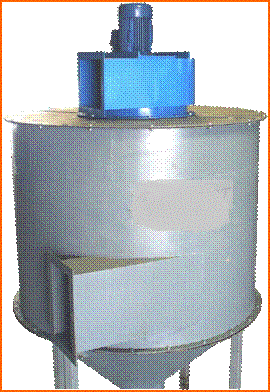

Cartridge
filter are designed for continuous operation even during the cleaning by air
pulse-jet control by microcontroller. Filter efficiency ensures separation of
even very fine, sticky and health hazardous dusts in the metal, food, ceramic,
wood, chemical and pharmaceutical industry.
|
Motor power/กำลังมอเตอร์ (kW) : direct drive |
2.2 |
|
Voltage/แรงดันไฟฟ้า (V/Ph/Hz) |
380/3/50 |
|
Filter area/พื้นที่กรองฝุ่น (m2) |
40-60 |
|
Air flow at machine/อัตราการไหลของอากาศวัดที่เครื่อง (m3/h) |
4200 |
|
Static pressure/ระดับความดันสุญญากาศ (Pa) |
2300 |
|
Dust capacity at machine/ถังเก็บฝุ่นที่เครื่อง (L) |
70 |
|
Air pulse generator/หัวฉีดทำความสะอาดฟิลเตอร์ |
4 |
|
Dimension/ขนาดเครื่อง Ø x H (mm) |
1370 x 2750 |
|
Inlet dimension/ขนาดท่อทางเข้า (mm) |
340x215 |
|
Outlet dimension/ขนาดท่อทางออก (mm) |
240x230 |
|
Weight/น้ำหนัก (Kg) |
315 |
|
Sound level/ระดับเสียง (dB(A) |
80 |
|
Protection/ระบบป้องกัน |
Cut-Off by Overload relay |
|
